You will know if it has properly as it will ask if to import the data from the main unit. when you are connecting it to the car make sure you have the car to on and then open the greddy program. I had someone else local to here have the same issue. Something that does not occur with the RS232, I guess because the RS232 +5v receives power in order to work, and the USB does the opposite, it gives power, which I find it odd because all tutorials USB or RS232 say connect positive to positive, but I think this is an important difference. With the usb PL2303 HXA, when I connect it to the emanage, the Active light turns on for some seconds (without giving power to the emanage). When I give it power both active (green) and Interaction (orange) lights turn on, Non-blinking. There is something that I’m doing “different” that I hope it is the cause: I don’t have the emanage connected to a car, I’m using a Power supply 12v 1A DC, connected to the Power and ground cables of connector 1, this is the only “strange” thing I’m doing. I hope it’s not the emanage blue that I bought it used. I’ve tried USB to TTL, and RS232 to TTL, apart from the nokia cable all the others I got them tested working on Hyper Terminal. Hi, I’ve been trying for years now to get my Emanage to work, or at least to connect it to the PC. MIKE MORAWSKI | Programming & Tech Blog – 6 May 10 Pic credits to random ebay adds and the main other ones is credited too a web page that has this tutorial but it is for a rs232 db9 com port which are now pretty obsolete on most laptops and computers these days. i tried the latest and for some reason it wont work so make sure you choose the 2009 driver…
Greddy emanage blue data cable driver#
you pick the let me choose thing and choose the driver from 2009 and not the latest one.
Greddy emanage blue data cable update#
I got my 2 data cables around the wrong way so all i did was have to change them around and it worked.Īlso every time I need to use the I have to got to device manager on my computer and update the driver, dont let windows choose it on win 10. Once this has been done it should be ok to use with the Greddy although I will let you know of a couple of thing s that happened to me and one thing I have to do each time I plug this in and use it. Mine came up as com port 5 other’s have been known to be com 4 or 3. It should come up in device manager as a com port.
Greddy emanage blue data cable install#
Please note when you plug this into your computer it may install automatically that is ok but also go through the install procedure. Just make sure you can still see which colour is which from the usb cable. then join the wires and (solder optional) and cover with heat shrink or electrical tape. It is just a matter and connecting the wires to the corresponding pins to do this the easiest way is strip your usb wires and cut the connectors off one end of the random wires that came with the tll converter and strip them. So the first thing you need to do is cut off an end of the usb cable make sure you have a male end kept on this Strip back the wires so you put the sheilding wires to one side and you should be left with 4 wires.īlack will be your ground/earth (in my case it was silver for some reason) This also came with 4 random coloured wires The latest driver is win 7 from memory but it will work with win ten, so i guess it will work with win 8 also.
Greddy emanage blue data cable drivers#
Oh this one I have listed from ebay also comes with the driver’s needed to make it work on most windows platform’s and the drivers were available to download via a link from the ebay add. The entire board is coated by high quality transparent heat-shrinkable sleeve,making the PCB in insulation state from outside. PL2303HX USB to TTL Converter module X 1. USB signal transferred to TTL signal,may be used by electronic enthusiasts.
Greddy emanage blue data cable serial#
This is the exact one I got and it came with 4 small cables with pins to attach it.ĮBay USB to TTL UART RS232 Serial Converter Module for AVR Arduino PIC | eBay *optional is solder and a soldering iron.

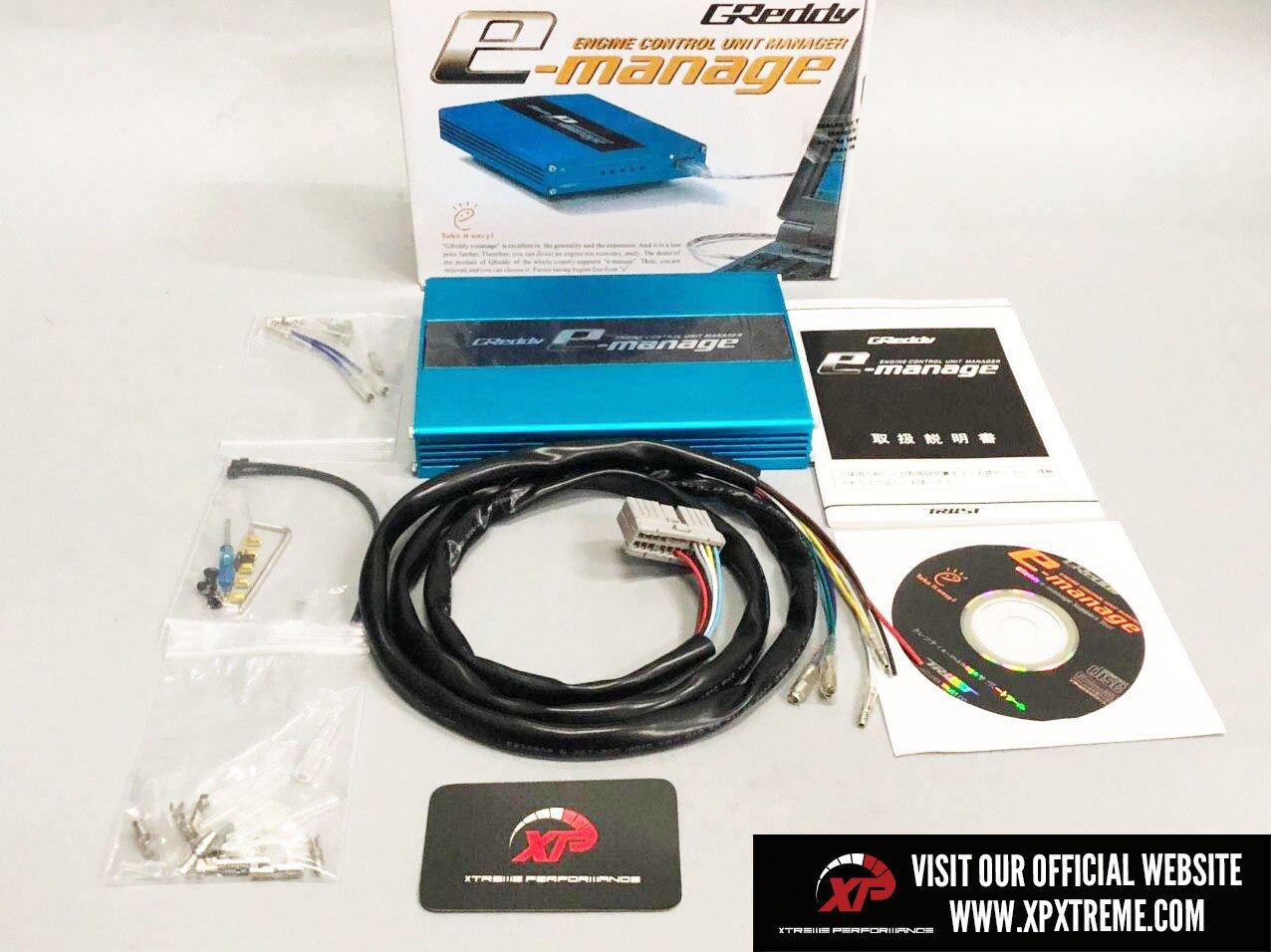

*a pair of scissors/cutters wire strippers *electrical tape or heat shrink to cover wires *a usb cable with atleast 1 end being male *a usb tll converter ( this takes the 5v power and converts it to a 3.3v supply as is my understanding of it) I will be pinching some pics off the internet from other places (but will credit where I got them from) for this as I haven’t taken any of my own and probably cant get them as clear. This did not work but the new usb became ppart of the solution. In this day and age eevrything is a usb cable so I tried one which has to have 2 male ends. I didnt have the data cable to go from a lap top to the greddy blue. After discovering that the 5 dials for fuel control on the front of the greddy blue are pretty much useless with the exception of the first one for idle. Ok So this came about because I bought a second hand greddy Emanage Blue to put on my Daihatsu move.
